N-Type Bifacial Dual Glass Module
Technical Features
SolarSpace is a global leader in high-efficiency solar technology, delivering premium modules built for performance and durability. With advanced N-Type cell technology and superior energy conversion, SolarSpace maximizes power generation — even in low-light conditions — driving a smarter, greener future.
N-Type Cell
Built with next-generation N-Type cells for higher efficiency and longer lifespan, ensuring consistent energy durability, and output over time
MBB
Advanced MBB design reduces power loss and enhances reliability,
capturing more sunlight for better performance
Half-cell Tech
Half-cell structure minimizes resistance and improves shade
tolerance, achieving stronger power output even in partial shading
Higher Power Output
Low Degradation
Together, these innovations deliver
greater performance durability, and
long-term value
Super Power Output
SolarSpace advanced TOPCon cells combined with MBB and high-density encapsulation provides ultra-high power output
High Reliability
Excellent harsh tests results and advanced half-cell tech improve product reliability for long-term life cycle
Extra Power Generation
N-type wafers and cells bring ultralow LID&LeTID degradation, less than 1% 1st year degradation guaranteed, in addition lower temperature coefficient and better weak-light response provide extra power generation
High ROI
Bifacial power generation reduces BOS and system LCOE dramatically, promoting the project ROl
SolarSpace Technology Co.，Ltd. was established in 2011, as a world leading solar cell and module manufacturer, concentrating on high efficient solar-technology production with 58.75GW+ capacity of solar cell and 5.7GW capacity of solar module in China and overseas.
*Please refer to SolarSpace for details

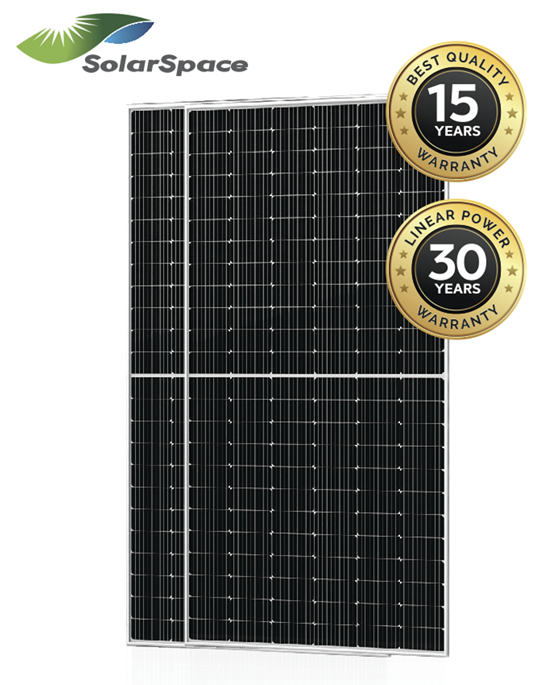

SSA-66HD
605-625N
N-TOPCon BiFacialDual Glass module
625W
Maximum
Power Output
23.14%
Maximum
Module Efficiency
15 years product warranty
30 years Linear Power Warranty
Comprehensive Certificates
•IEC61215 •IEC61730 •IEC61701:Salt mist corrosion test
•IEC62716:Ammonia corrosion test
•IEC60068:Dust and Sand test
•I509001:2015: Quality Management System
•15014001:2015: Environment Management System
•ISO45001:2018: Occupational Health and Safety Management Systems
N-TOPCon BiFacialDual Glass module SSA-66HD 605-625N
| Electric Characteristics (STC) | |||||
|---|---|---|---|---|---|
| Module Type | SSA-66HD-605N | SSA-66HD-610N | SSA-66HD-615N | SSA-66HD-620N | SSA-66HD-625N |
| Maximum Power (Pmax) [W] | 605 | 610 | 615 | 620 | 625 |
| Open-Circuit Voltage (Voc) [V] | 51.42 | 51.62 | 51.82 | 52.02 | 52.22 |
| Maximum Power Voltage (Vmp) [V] | 42.32 | 42.45 | 42.58 | 42.71 | 42.84 |
| Short-Circuit Current (Isc) [A] | 14.99 | 15.05 | 15.11 | 15.17 | 15.23 |
| Maximum Power Current (Imp) [A] | 14.31 | 14.38 | 14.45 | 14.52 | 14.59 |
| Module Efficiency | 22.40% | 22.58% | 22.77% | 22.95% | 23.14% |
Irradiation 1000W/m², Cell Temperature 25°C, AM=1.5
| Electric Characteristics (NMOT) | |||||
|---|---|---|---|---|---|
| Module Type | SSA-66HD-605N | SSA-66HD-610N | SSA-66HD-615N | SSA-66HD-620N | SSA-66HD-625N |
| Maximum Power (Pmax) [W] | 457 | 461 | 465 | 469 | 473 |
| Open-Circuit Voltage (Voc) [V] | 48.88 | 49.07 | 49.26 | 49.45 | 49.64 |
| Maximum Power Voltage (Vmp) [V] | 39.65 | 39.81 | 39.98 | 40.13 | 40.30 |
| Short-Circuit Current (Isc) [A] | 12.11 | 12.17 | 12.23 | 12.29 | 12.35 |
| Maximum Power Current (Imp) [A] | 11.54 | 11.59 | 11.64 | 11.69 | 11.74 |
Irradiance 800 W/m², Ambient Temperature 20 °C, Wind Speed 1 m/s, AM=1.5
| Power Gain | 5% | 10% | 15% | 20% | 25% |
|---|---|---|---|---|---|
| Maximum Power (Pmax) [W] | 641 | 671 | 702 | 732 | 763 |
| Open-Circuit Voltage (Voc) [V] | 51.64 | 51.64 | 51.64 | 51.66 | 51.66 |
| Maximum Power Voltage (Vmp) [V] | 42.45 | 42.45 | 42.45 | 42.47 | 42.47 |
| Short-Circuit Current (Isc) [A] | 15.79 | 16.57 | 17.35 | 18.13 | 18.91 |
| Maximum Power Current (Imp) [A] | 15.11 | 15.81 | 16.54 | 17.24 | 17.97 |
| Temperature coefficient of Isc | +0.045%/°C |
| Temperature coefficient of Voc | -0.260%/°C |
| Temperature coefficient of Pmax | -0.290%/°C |
| NMOT | 45±2°C |
Engineered Design
Mechanical Characteristics
| Cell Type | Mono TOPCon |
| Number of Cells | 132 (6×22) |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 32.5 kg |
| Glass |
Front Glass: 2.0 mm AR-coated semi-tempered glass Back Glass: 2.0 mm glazed semi-tempered glass |
| Frame | Silver, Anodized Aluminum Alloy |
| Output Cables | 4 mm² (IEC), 12 AWG (UL), 300 mm (including connector) or customized length |
| Junction Box | IP68 Rated, 3 diodes |
| Connector | MC4-EVO2 or MC4 Compatible |
| Packaging | 36 pieces/pallet, 720 pieces/40' container |
Characteristics
I-V/P-V Curve at Different Irradiation SSA-66HD-610N
I-V Curve at Different Temperature
SSA-66HD-610N
Operating Conditions
| Maximum System Voltage | 1500V DC (IEC) |
| Power Tolerance | 0 ~ +3% |
| Operating Temperature | -40°C ~ +85°C |
| Maximum Series Fuse Rating | 30A |
| Mechanical Load Front Rear | 5400 Pa |
| Mechanical Load Back Rear | 2400 Pa |
| Bifaciality | 80 ± 5% |
